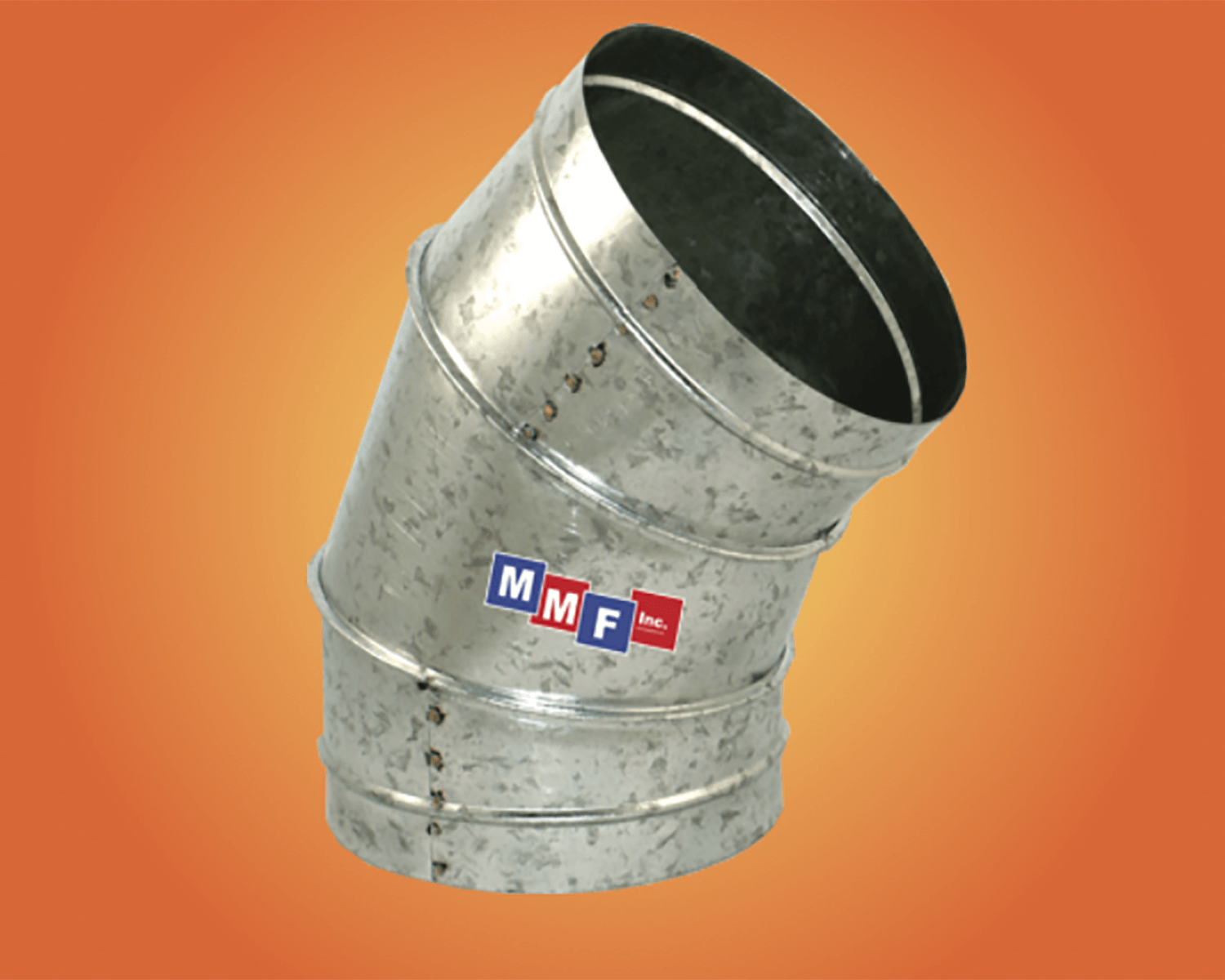

45° 1-1/2 Times Radius Elbows
- 20″ And Above
- Call for Quote
| Size | Radius To Center | 28 GAPart Number | 26 GAPart Number | 24 GAPart Number | 22 GAPart Number |
|---|---|---|---|---|---|
| 4" | 6" | ELZH04 | ELZI04 | ELZJ04 | ELZK04 |
| 5" | 7 1/2" | ELZH05 | ELZI05 | ELZJ05 | ELZK05 |
| 6" | 9" | ELZH06 | ELZI06 | ELZJ06 | ELZK06 |
| 7" | 10 1/2" | ELZH07 | ELZI07 | ELZJ07 | ELZK07 |
| 8" | 12" | ELZH08 | ELZI08 | ELZJ08 | ELZK08 |
| 9" | 13 1/2" | ELZH09 | ELZI09 | ELZJ09 | ELZK09 |
| 10" | 15" | ELZH10 | ELZI10 | ELZJ10 | ELZK10 |
| 12" | 18" | ELZH12 | ELZI12 | ELZJ12 | ELZK12 |
| 14" | 21" | N/A | ELZI14 | ELZJ14 | ELZK14 |
| 16" | 24" | N/A | ELZI16 | ELZJ16 | ELZK16 |
| 18" | 27" | N/A | ELZI18 | ELZJ18 | ELZK18 |
| 20" | 30" | N/A | N/A | ELZJ20 | ELZK20 |
| 22" | 33" | N/A | N/A | N/A | ELZK22 |
| 24" | 36" | N/A | N/A | N/A | ELZK24 |
| 26" | 39" | N/A | N/A | N/A | ELZK26 |
| 28" | 42" | N/A | N/A | N/A | ELZK28 |
| 30" | 45" | N/A | N/A | N/A | ELZK30 |
| 32" | 48" | N/A | N/A | N/A | ELZK32 |
| 34" | 51" | N/A | N/A | N/A | ELZK34 |
| 36" | 54" | N/A | N/A | N/A | ELZK36 |
