Products

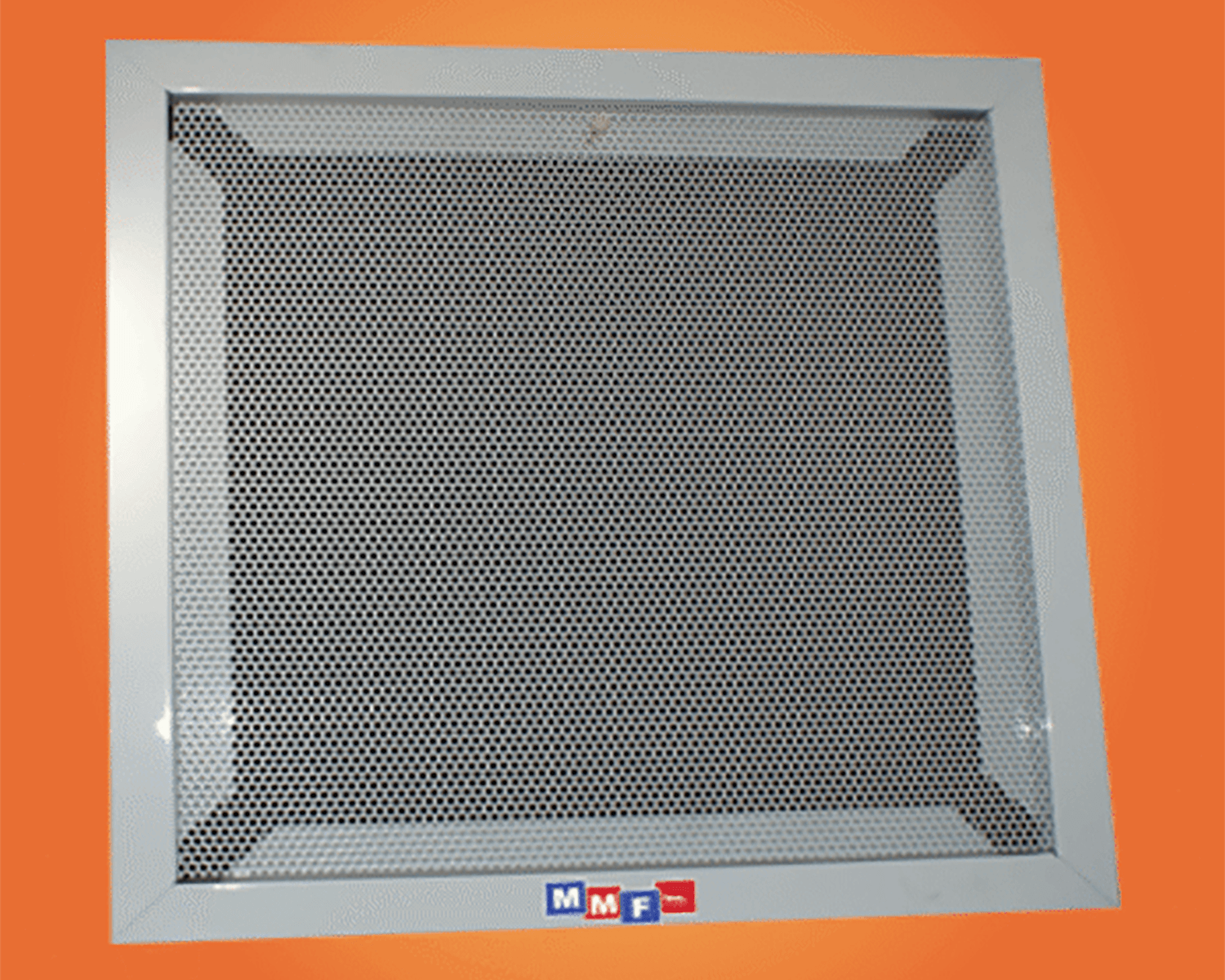

Perforated Diffuser
- Filters for filter grills are not supplied / manufactured by modular metals
- Call for installation of start collars in molded back and steel back with FG
- Carton quantity are subject to change when collars are factory installed in diffusers
Steel Frame 3″ High with Fiberglass Back
| Size | RD. | Type | # Per Carton | Part Number |
|---|---|---|---|---|
| 12" x 24" | 4 ~ 12 | Return | 8 | PDRMD1224 |
| 24" x 24" | 4 ~ 20 | Return | 3 | PDRMD2424 |
| 12" x 24" | 4 ~ 12 | Universal | 6 | PDUMD1224 |
| 24" x 24" | 4 ~ 20 | Universal | 3 | PDUMD2424 |
| 24" x 24" | 4 ~ 20 | Supply | 3 | PDSMD2424 |
| 24" x 24" | 4 ~ 20 | Filter Grill | 4 | PDFMD2424 |
Steel Frame 3″ High with Steel Back – Price Reflects Collar Installed
| Size | RD. | Type | Part Number |
|---|---|---|---|
| 12" x 24" | 4 ~ 12 | Return | PDRMM1224 |
| 24" x 24" | 4 ~ 20 | Return | PDRMM2424 |
| 12" x 24" | 4 ~ 12 | Universal | PDUMM1224 |
| 24" x 24" | 4 ~ 20 | Universal | PDUMM2424 |
| 24" x 24" | 4 ~ 20 | Supply | PDSMM2424 |
| 24" x 24" | 4 ~ 20 | Filter Grill | PDFMM2424 |
Face / Grill Only
| Size | Type | # Per Carton | Part Number |
|---|---|---|---|
| 12" x 24" | Perforated Face Only | 64 | PDG1224 |
| 24" x 24" | Perforated Face Only | 24 | PDG2424 |
