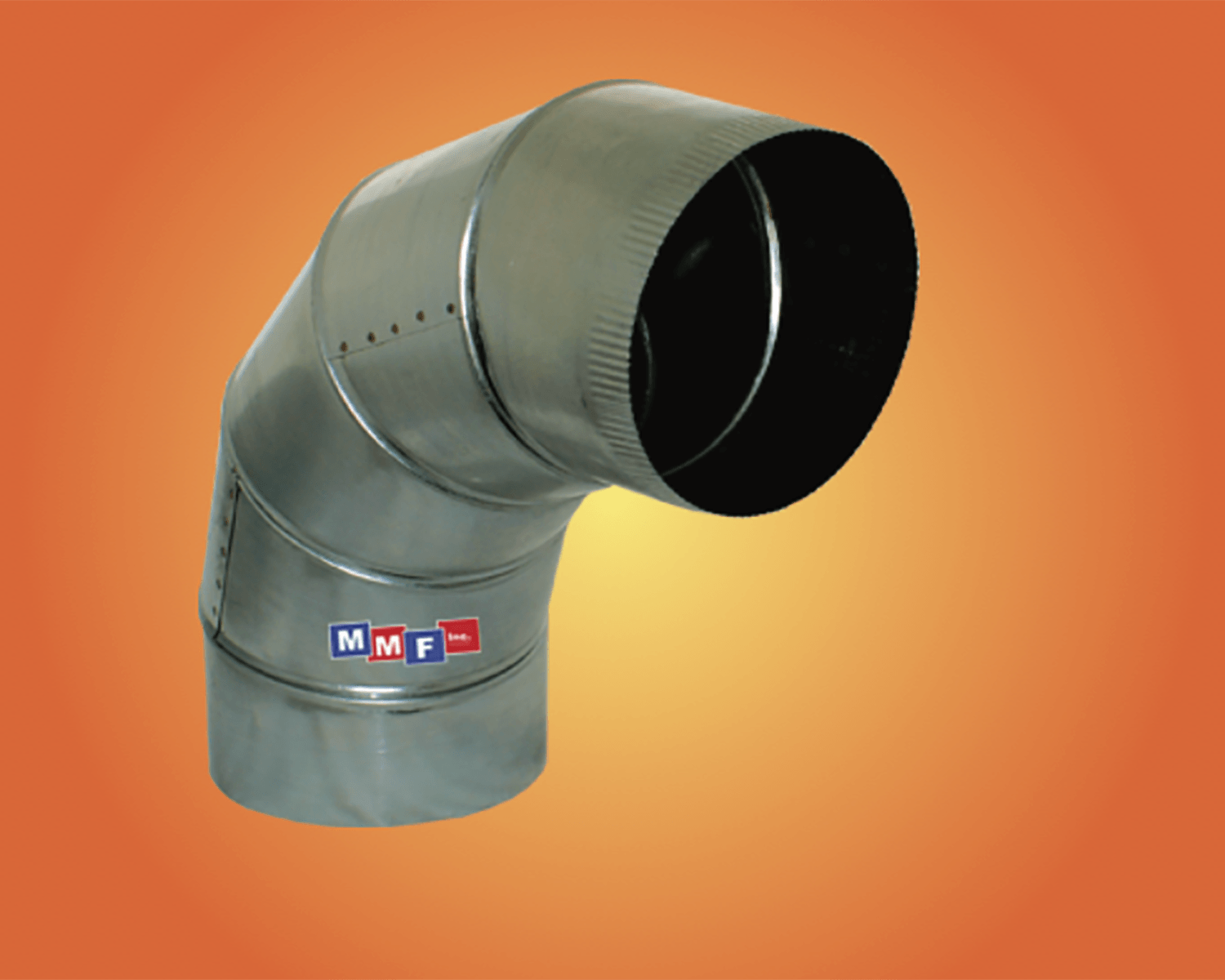

90° 1-1/2 Times Radius Elbows
- 20″ And Above
- Crimp both ends
- Call for Quote
| Size | Radius To Center | 28 GAPart Number | 26 GAPart Number | 24 GAPart Number | 22 GAPart Number |
|---|---|---|---|---|---|
| 4" | 6" | ELXH04 | ELXI04 | ELXJ04 | ELXK04 |
| 5" | 7 1/2" | ELXH05 | ELXI05 | ELXJ05 | ELXK05 |
| 6" | 9" | ELXH06 | ELXI06 | ELXJ06 | ELXK06 |
| 7" | 10 1/2" | ELXH07 | ELXI07 | ELXJ07 | ELXK07 |
| 8" | 12" | ELXH08 | ELXI08 | ELXJ08 | ELXK08 |
| 9" | 13 1/2" | ELXH09 | ELXI09 | ELXJ09 | ELXK09 |
| 10" | 15" | ELXH10 | ELXI10 | ELXJ10 | ELXK10 |
| 12" | 18" | ELXH12 | ELXI12 | ELXJ12 | ELXK12 |
| 14" | 21" | N/A | ELXI14 | ELXJ14 | ELXK14 |
| 16" | 24" | N/A | ELXI16 | ELXJ16 | ELXK16 |
| 18" | 27" | N/A | ELXI18 | ELXJ18 | ELXK18 |
| 20" | 30" | N/A | N/A | ELXJ20 | ELXK20 |
| 22" | 33" | N/A | N/A | N/A | ELXK22 |
| 24" | 36" | N/A | N/A | N/A | ELXK24 |
| 26" | 39" | N/A | N/A | N/A | ELXK26 |
| 28" | 42" | N/A | N/A | N/A | ELXK28 |
| 30" | 45" | N/A | N/A | N/A | ELXK30 |
| 32" | 48" | N/A | N/A | N/A | ELXK32 |
| 34" | 51" | N/A | N/A | N/A | ELXK34 |
| 36" | 54" | N/A | N/A | N/A | ELXK36 |
