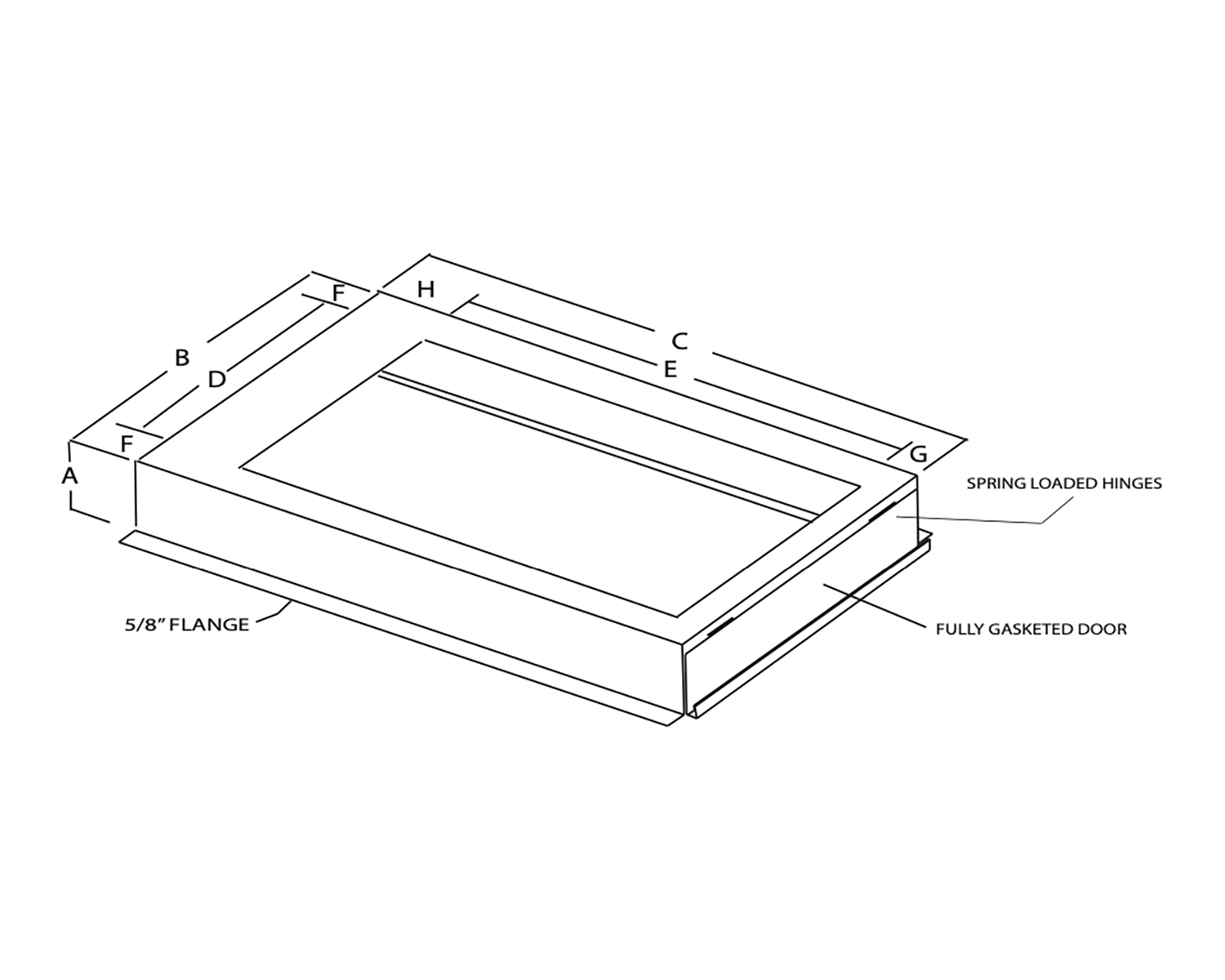

Filter Base Dimensions
Filter Base Dimensions
Upflow / Horiz. Gas Furnace
| Filter Size | Overall (A, B, C) | Opening (D, E) | Top (F, G, H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 1" | A | B | C | D | E | F | G | H |
| BRFBJ1425A | 14" x 25" | 3 1/4" | 15 3/8" | 28 1/2" | 12 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ1625A | 16" x 25" | 3 1/4" | 17 3/8" | 28 1/2" | 14 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ2025A | 20" x 25" | 3 1/4" | 21 3/8" | 28 1/2" | 18 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ3025A | 30" x 25" | 3 1/4" | 31 3/8" | 28 1/2" | 28 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ2424A | 24" x 24" | 3 1/4" | 25 3/8" | 28 1/2" | 22 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| Filter Size | Overall (A, B, C) | Opening (D, E) | Top (F, G, H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 1 & 2" | A | B | C | D | E | F | G | H |
| BRFBJ1425B | 14"x 25" | 4 1/4" | 15 3/8" | 28 1/2" | 12 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ1625B | 16"x 25" | 4 1/4" | 17 3/8" | 28 1/2" | 14 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ2025B | 20" x 25" | 4 1/4" | 21 3/8" | 28 1/2" | 18 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ3025B | 30" x 25" | 4 1/4" | 31 3/8" | 28 1/2" | 28 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ2424B | 24" x 24" | 4 1/4" | 25 3/8" | 28 1/2" | 22 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| Filter Size | Overall (A, B, C) | Opening (D, E) | Top (F, G, H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 1, 2 & 4" | A | B | C | D | E | F | G | H |
| BRFBJ1425C | 14" x 25" | 6 1/4" | 15 3/8" | 28 1/2" | 12 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ1625C | 16" x 25" | 6 1/4" | 17 3/8" | 28 1/2" | 14 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ2025C | 20" x 25" | 6 1/4" | 21 3/8" | 28 1/2" | 18 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ3025C | 30" x 25" | 6 1/4" | 31 3/8" | 28 1/2" | 28 5/8" | 251/4" | 1 3/8" | 1" | 2" |
| BRFBJ2424C | 24" x 24" | 6 1/4" | 25 3/8" | 28 1/2" | 22 5/8" | 251/4" | 1 3/8" | 1" | 2" |
Fan / Coil Unit
| Filter Size | Overall (A, B, C) | Opening (D, E) | Top (F, G, H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 1" | A | B | C | D | E | F | G | H |
| BRFBJ1420A | 14" x 20" | 3 1/4" | 15 3/8" | 22" | 12 5/8" | 19" | 1 3/8" | 1" | 2" |
| BRFBJ1620A | 16" x 20" | 3 1/4" | 17 3/8" | 22" | 14 5/8" | 19" | 1 3/8" | 1" | 2" |
| BRFBJ2020A | 20" x 20" | 3 1/4" | 21 3/8" | 22" | 18 5/8" | 19" | 1 3/8" | 1" | 2" |
| Filter Size | Overall (A, B, C) | Opening (D, E) | Top (F, G, H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 1 & 2" | A | B | C | D | E | F | G | H |
| BRFBJ1420B | 14" x 20" | 4 1/4" | 15 3/8" | 22" | 12 5/8" | 19" | 1 3/8" | 1" | 2" |
| BRFBJ1620B | 16" x 20" | 4 1/4" | 17 3/8" | 22" | 14 5/8" | 19" | 1 3/8" | 1" | 2" |
| BRFBJ2020B | 20" x 20" | 4 1/4" | 21 3/8" | 22" | 18 5/8" | 19" | 1 3/8" | 1" | 2" |
| Filter Size | Overall (A, B, C) | Opening (D, E) | Top (F, G, H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | 1, 2 & 4" | A | B | C | D | E | F | G | H |
| BRFBJ1420C | 14" x 20" | 6 1/4" | 15 3/8" | 22" | 12 5/8" | 19" | 1 3/8" | 1" | 2" |
| BRFBJ1620C | 16" x 20" | 6 1/4" | 17 3/8" | 22" | 14 5/8" | 19" | 1 3/8" | 1" | 2" |
| BRFBJ2020C | 20" x 20" | 6 1/4" | 21 3/8" | 22" | 18 5/8" | 19" | 1 3/8" | 1" | 2" |
