Filter Base
M-Filter Bases are manufactured by Modular Metal Fabricators out of galvanized sheet metal to precise dimensions for the residential and light commercial HVAC market. M-Filter Bases allow for convenient changing of lters without removing furnace door by homeowners on a regular basis. These bases are used in up- ow, down- ow, and horizontal applications and are designed to accommodate a variety of lters. All Filter Bases have fully gasketed doors and spring loaded hinges.
- Durable Galvanized Steel Construction
- Integrated Door Handle
- Spring Loaded Hinges
- Bottom Cut-Outs for Easy Screw Installation
- Fully Gasketed Door Opening
A = 1” FILTER | B = 1” OR 2” FILTER | C = 1”, 2” OR 4” FILTER

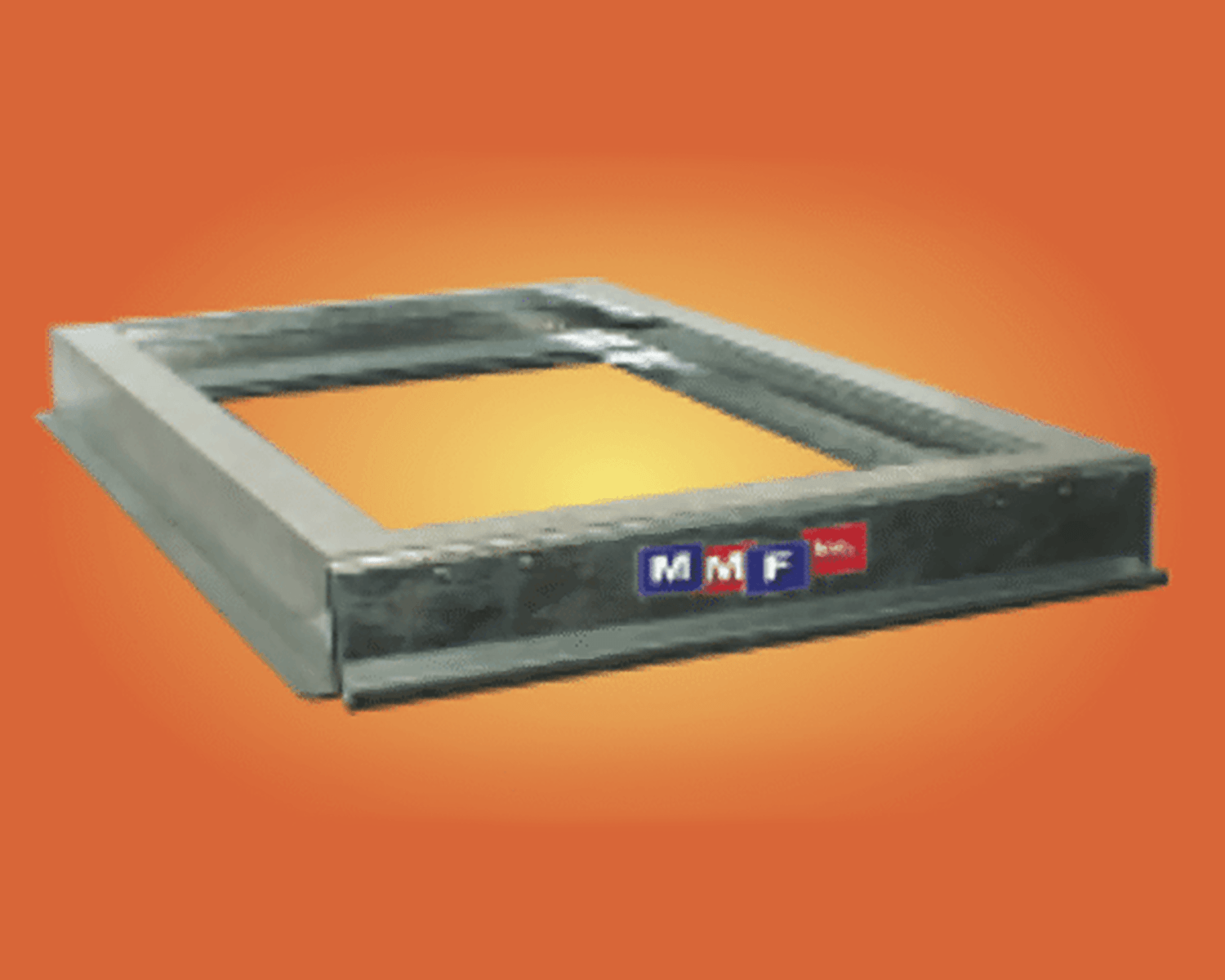

1” Filter Base
| Part Number | Description | Shipped |
|---|---|---|
| BRFBJ1425A | 14" x 25" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ1625A | 16" x 25" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ2025A | 20" x 25" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ3025A | 30" x 25" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ2424A | 24" x 24" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ1420A | 14" x 20" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ1620A | 16" x 20" x 3 1/4" - Fits 1" Filters | 1 Per Box |
| BRFBJ2020A | 20" x 20" x 3 1/4" - Fits 1" Filters | 1 Per Box |

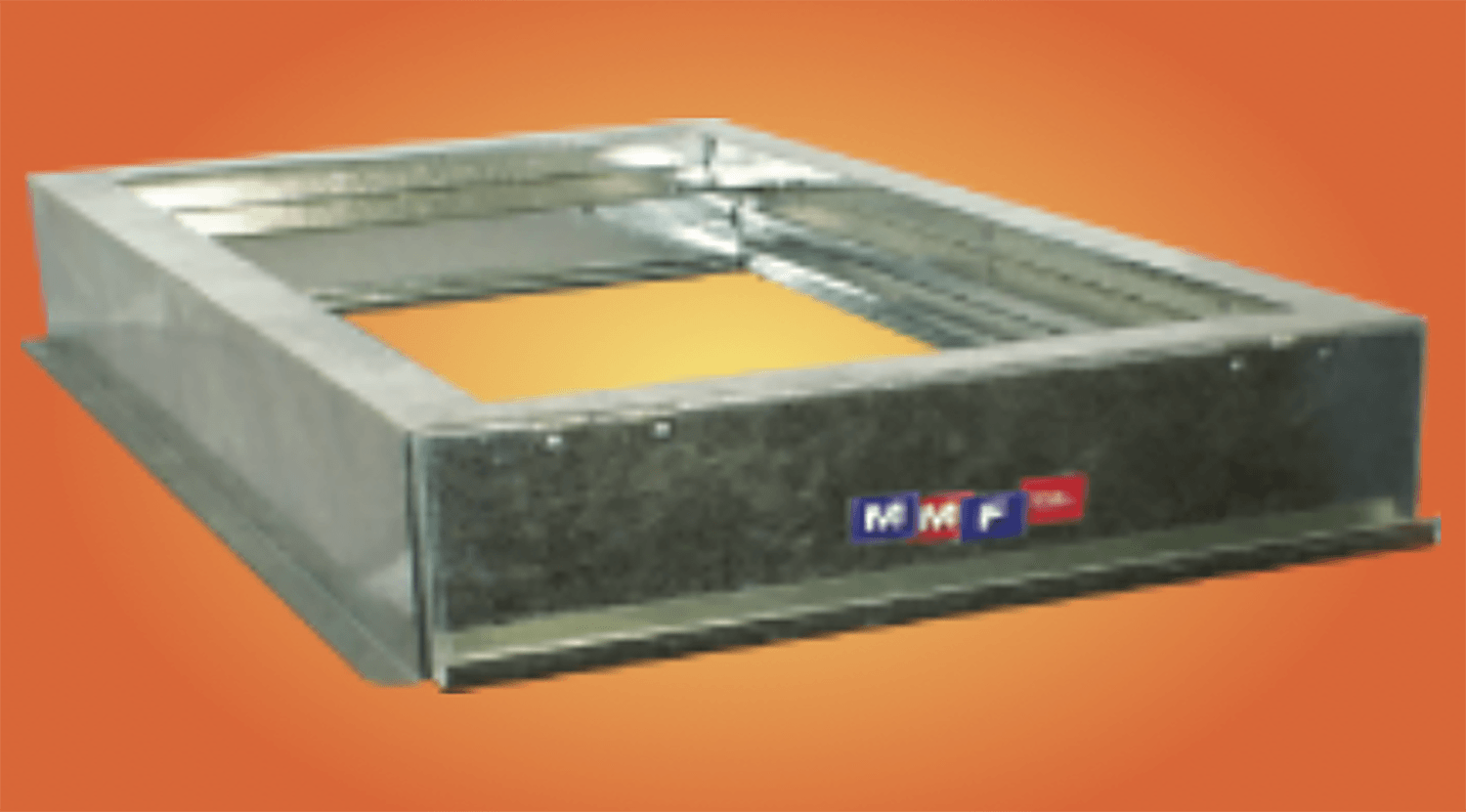

1” or 2” Filter Base
| Part Number | Description | Shipped |
|---|---|---|
| BRFBJ1425B | 14" x 25" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |
| BRFBJ1625B | 16" x 25" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |
| BRFBJ2025B | 20" x 25" x 4 1/4" - Fits 1 ", 2" Filters | 1 Per Box |
| BRFBJ3025B | 30" x 25" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |
| BRFBJ2424B | 24" x 24" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |
| BRFBJ1620B | 16" x 20" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |
| BRFBJ1420B | 14" x 20" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |
| BRFBJ2020B | 20" x 20" x 4 1/4" - Fits 1", 2" Filters | 1 Per Box |

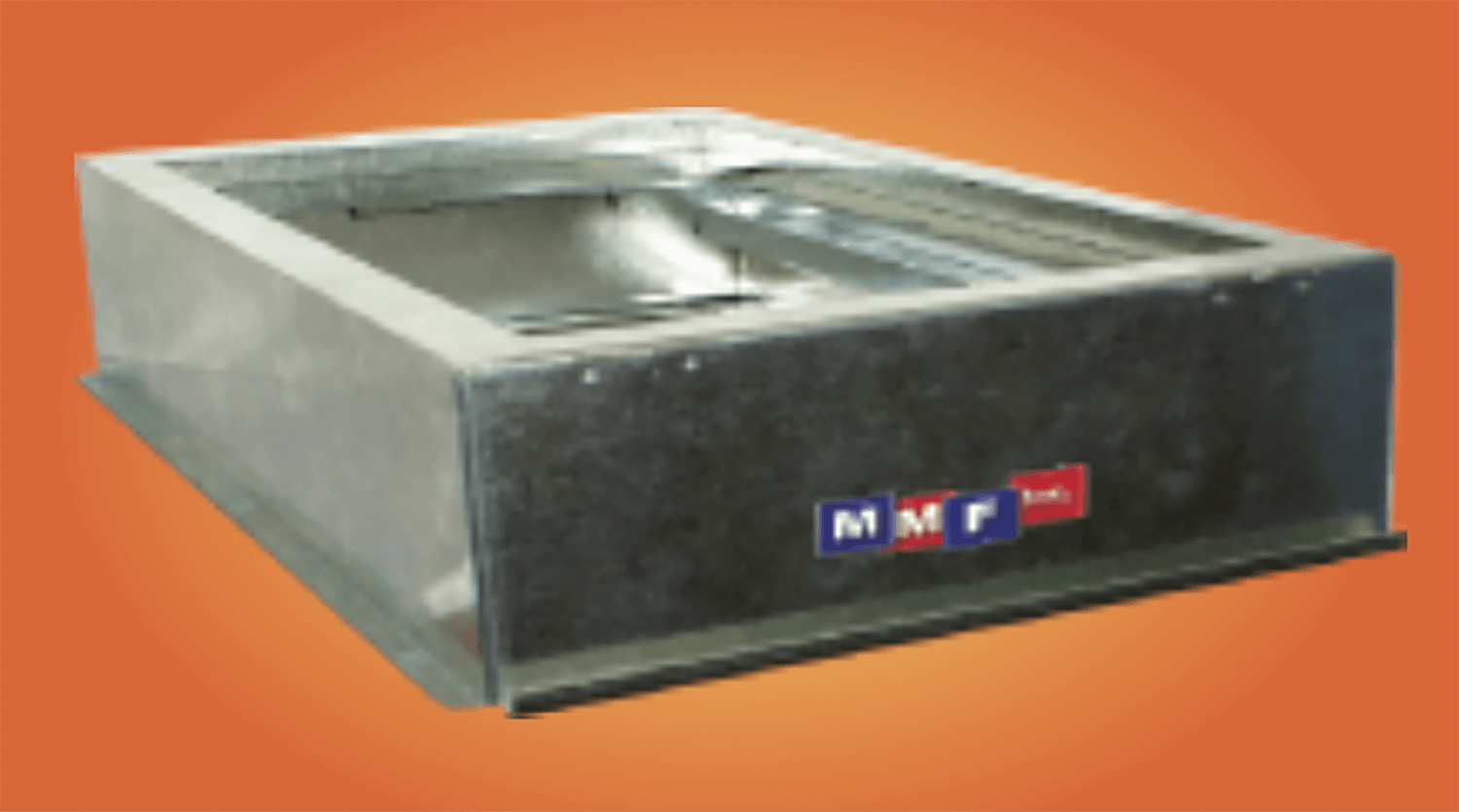

1”, 2“, or 4” Filter Base
| Part Number | Description | Shipped |
|---|---|---|
| BRFBJ1425C | 14" x 25" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ1625C | 16" x 25" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ2025C | 20" x 25" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ3025C | 30" x 25" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ2424C | 24" x 24" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ1420C | 14" x 20" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ1620C | 16" x 20" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
| BRFBJ2020C | 20" x 20" x 6 1/4" - Fits 1", 2", 4" Filters | 1 Per Box |
