Krueger: Double Duct

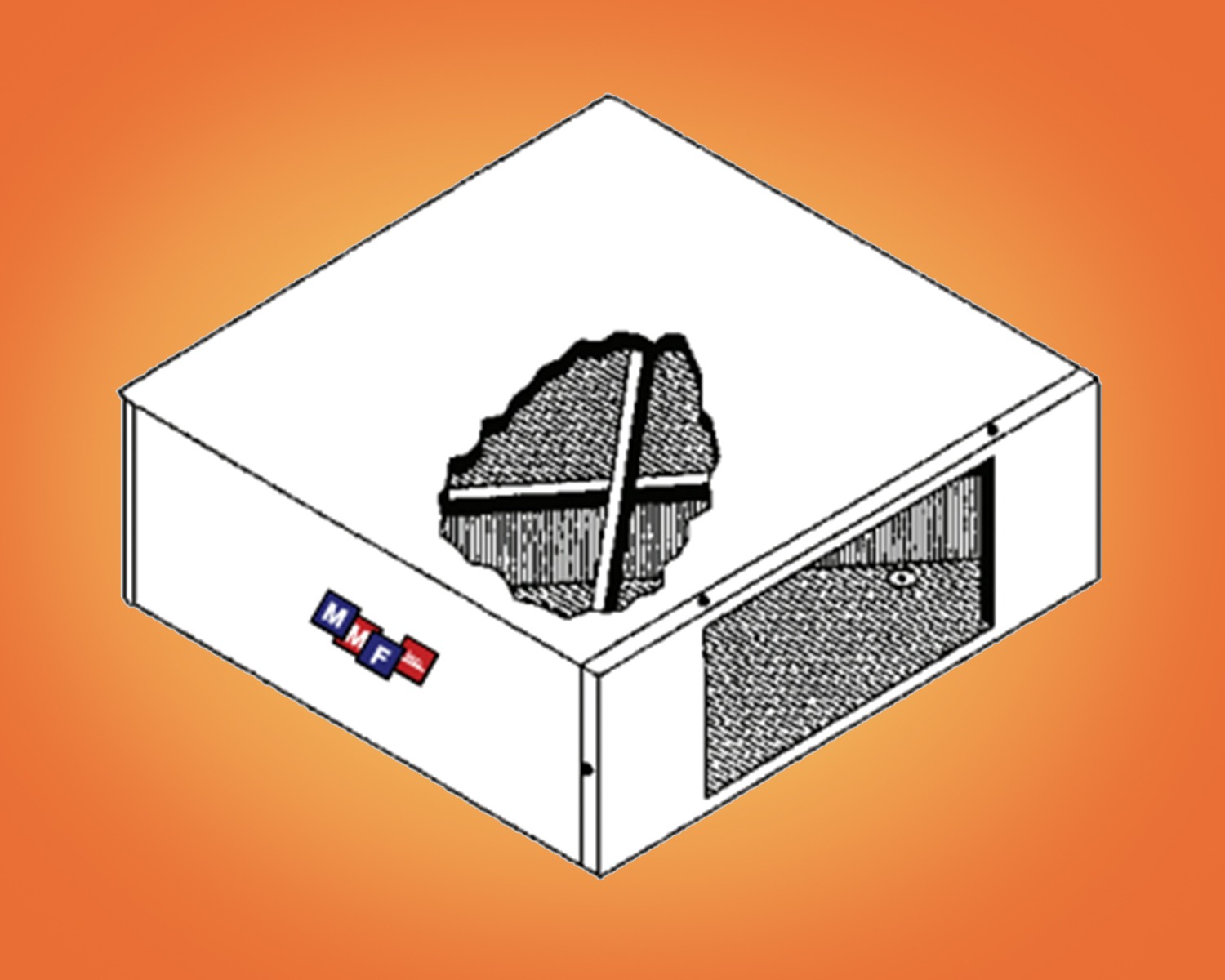

Double Duct Attenuator – Assembled
- Per Krueger Specifications – 1″ Liner – 24 Gauge
| Attenuator Size | Discharge Panel Size | ||||
|---|---|---|---|---|---|
| No. | A | B | C | D | E |
| 4, 5, 6 | 24 1/8" | 8" | 23" | 14" | 7 1/4" |
| 7, 8 | 24 1/8" | 10" | 23" | 18" | 9 1/4" |
| 9, 10 | 28 1/8" | 12 1/2" | 35" | 22" | 11 3/4" |
| 12 | 32 1/8" | 15" | 35" | 25" | 14 1/4" |
| 14 | 40 1/8" | 17 1/2" | 35" | 30" | 14 1/4" |
| 16 | 48 1/8" | 18" | 35" | 34" | 16 1/2" |
