Titus: Double Duct

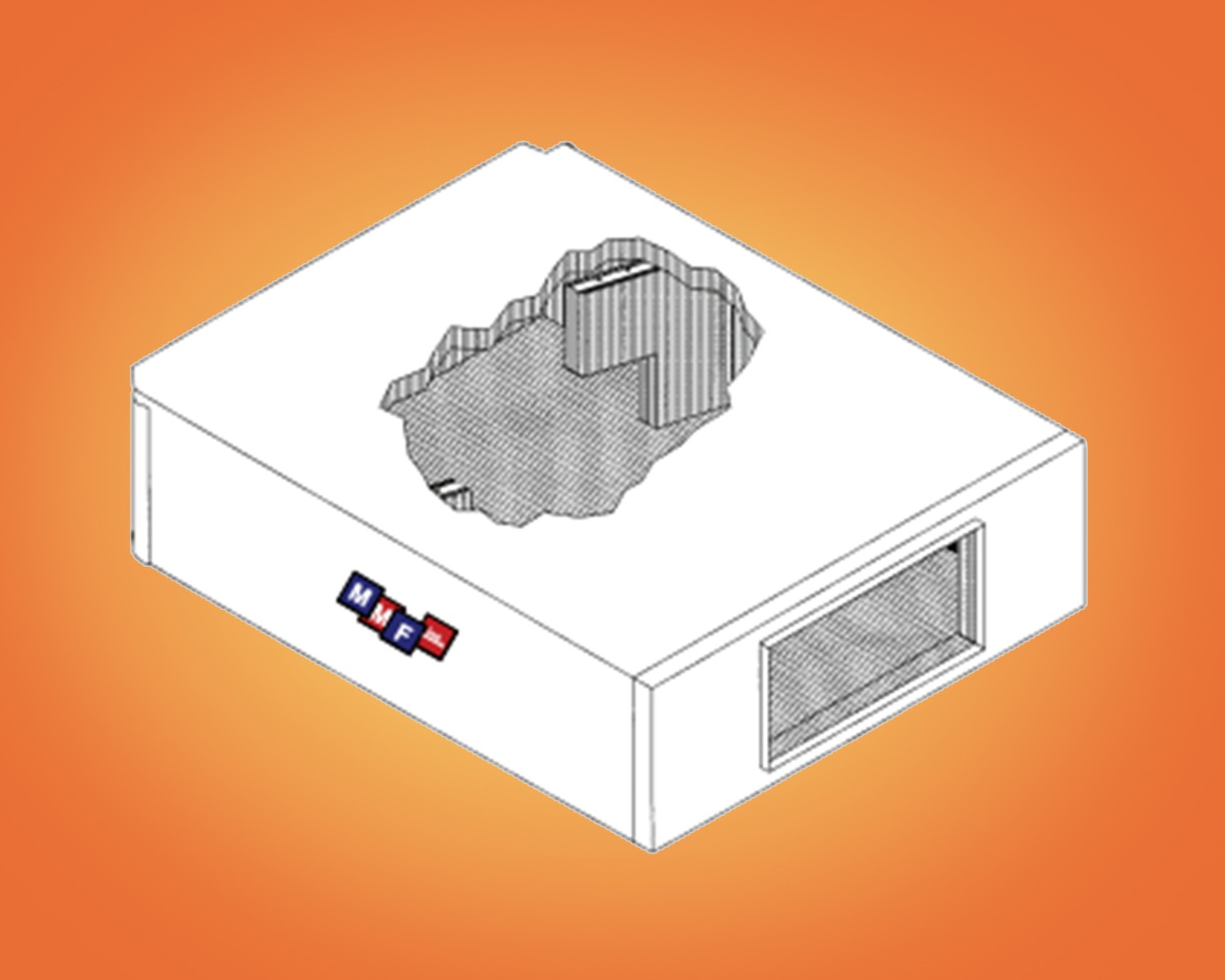

Double Duct Attenuator – Assembled
- Per Titus Specifications – 1″ Liner – 24 Gauge
- Manufactured from Prime Galvanized Steel
- Custom Sizes Upon Request

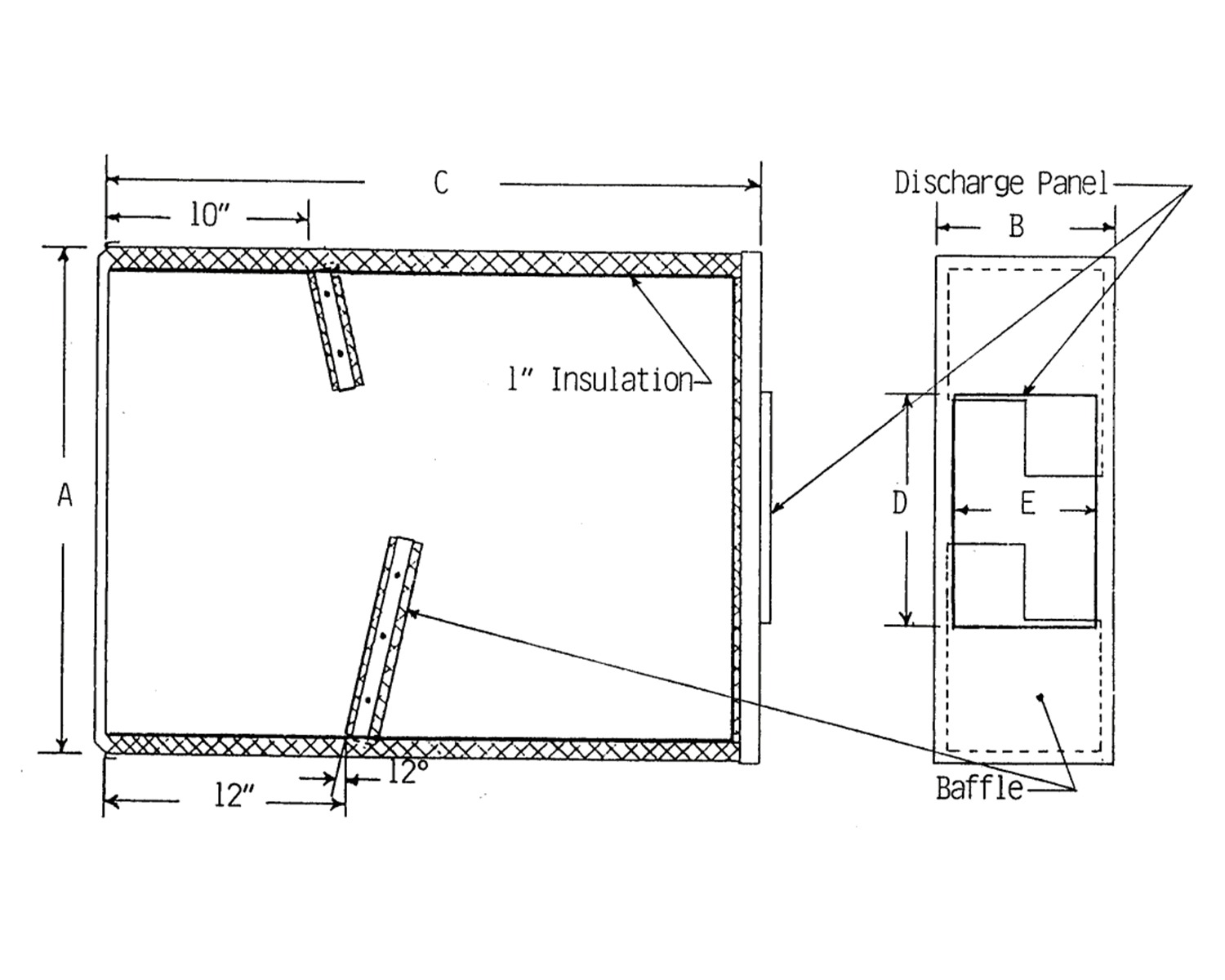

| Attenuator Size | Discharge Panel Size | ||||
|---|---|---|---|---|---|
| No. | A | B | C | D | E |
| 4, 5, 6 | 24" | 8" | 30" | 11 7/8" | 5 7/8" |
| 7, 8 | 24" | 10" | 30" | 11 7/8" | 9 7/8" |
| 9, 10 | 28" | 12 1/2" | 30" | 13 7/8" | 12 7/8" |
| 12 | 32" | 15" | 30" | 15 7/8" | 14 7/8" |
| 14 | 40" | 17 1/2" | 36" | 19 7/8" | 17 3/8" |
| 16 | 48" | 18" | 48" | 23 7/8" | 17 7/8" |
