Titus: Single Duct

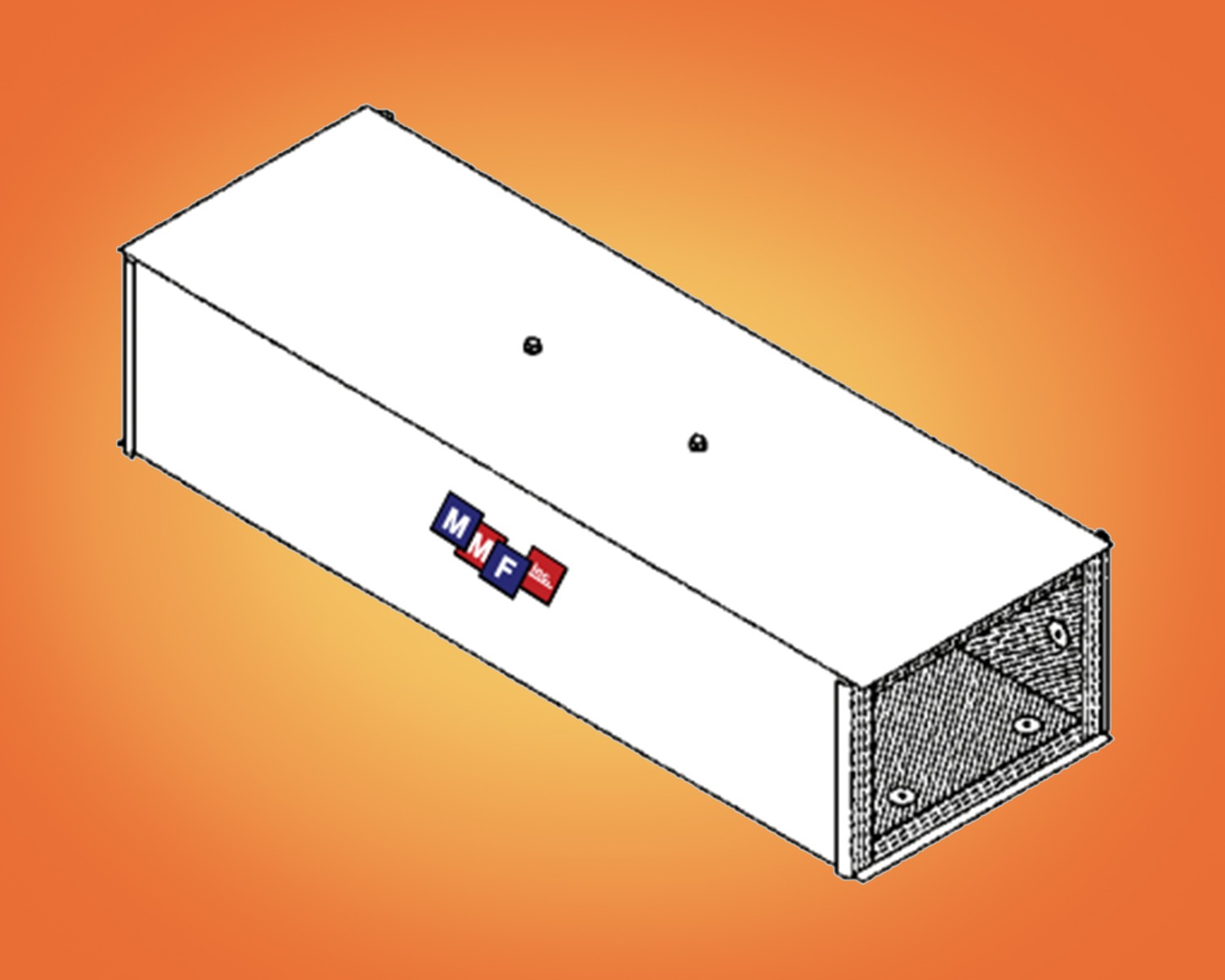

Single Duct Attenuator – Assembled
- Per Titus Specifications – 1″ Liner – 24 Gauge
- Titus has changed the 24-16 Single Duct back to 38″ x 18″
- Manufactured from Prime Galvanized Steel
- Custom Sizes Upon Request

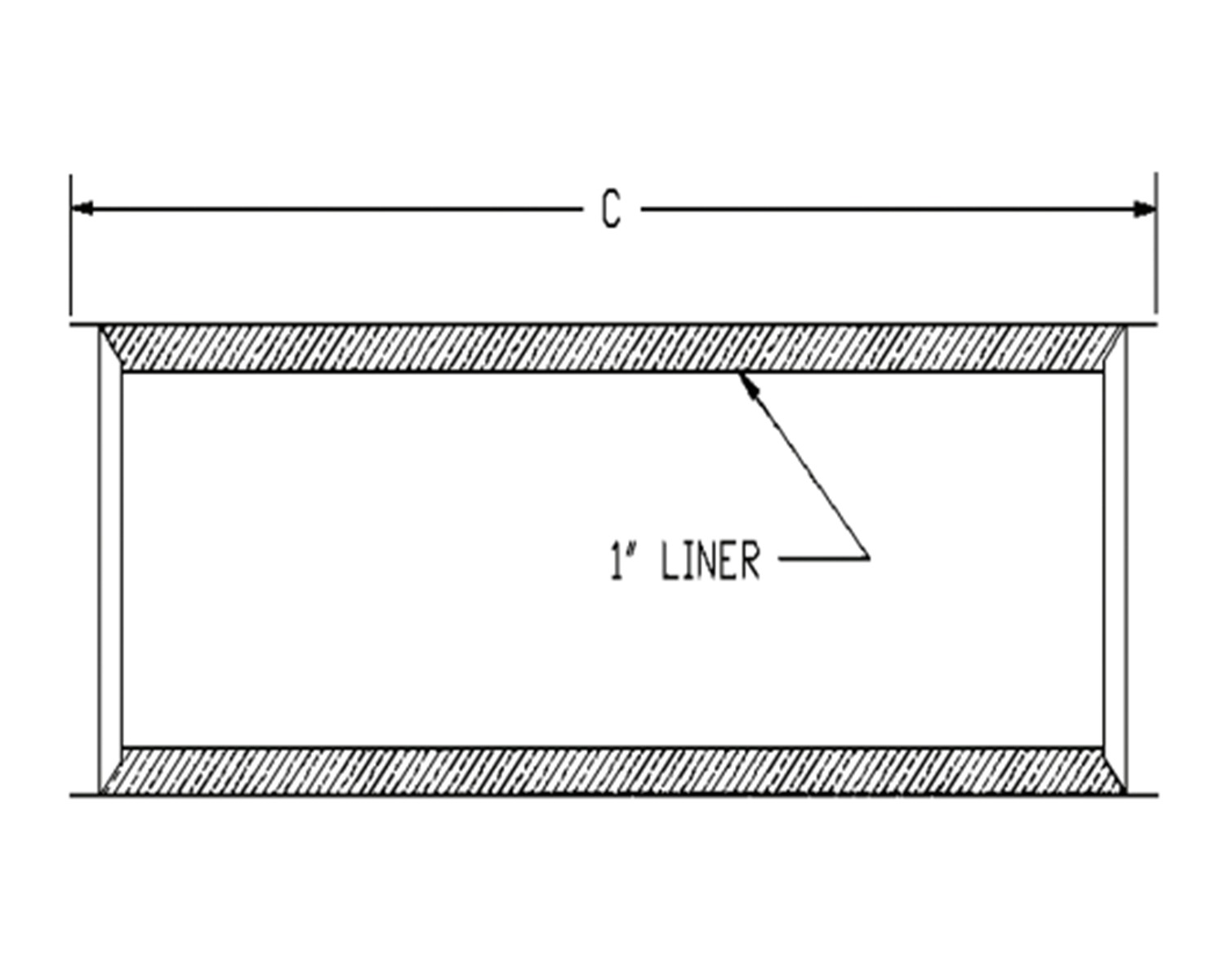

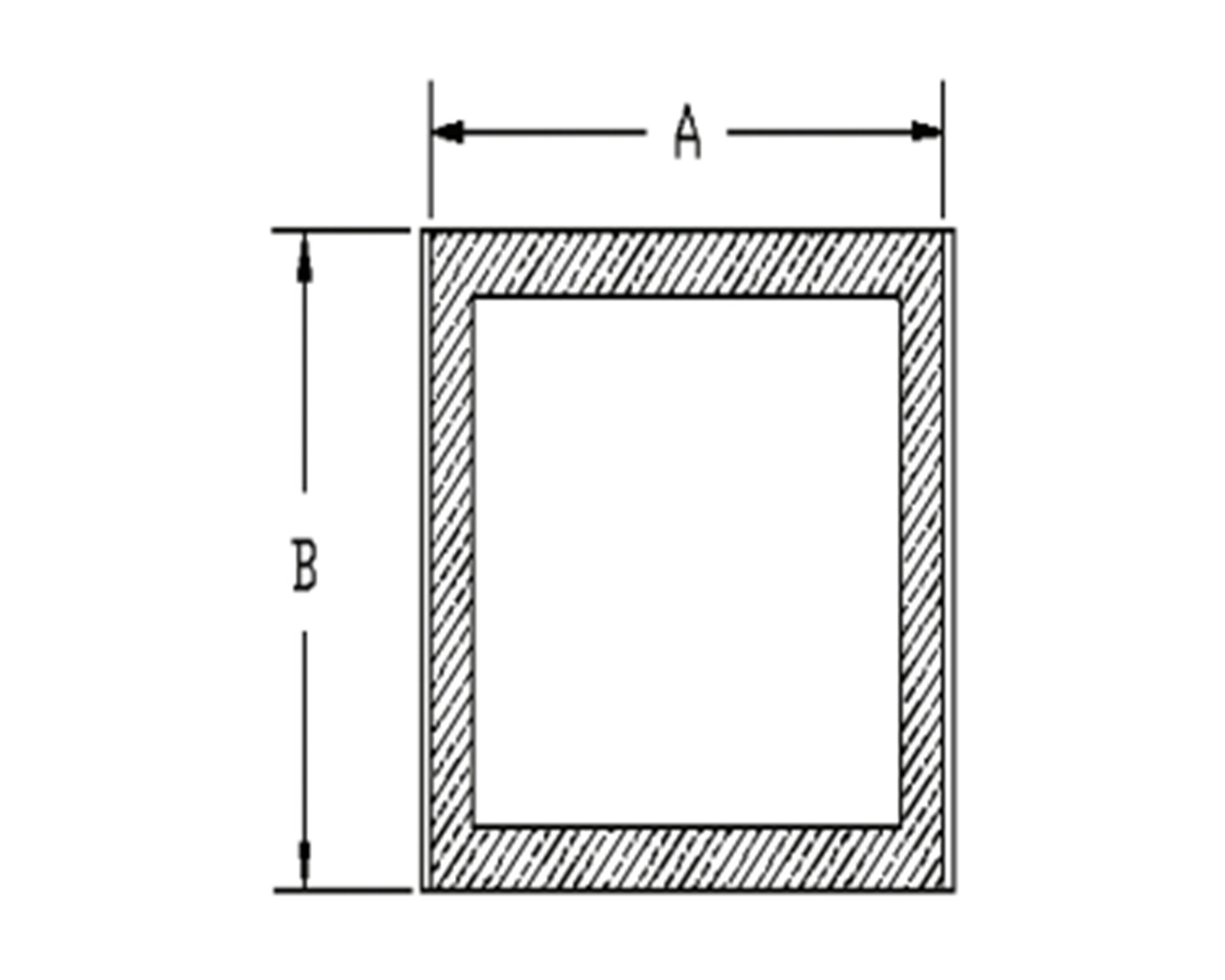

| Attenuator Size | |||
|---|---|---|---|
| No. | A | B | C |
| 4, 5, 6 | 12" | 8" | 36" |
| 7, 8 | 12" | 10" | 36" |
| 9, 10 | 14" | 12 1/2" | 36" |
| 12 | 16" | 15" | 36" |
| 14 | 20" | 17 1/2" | 36" |
| 16 | 24" | 18" | 36" |
| 24 - 16 | 38" | 18" | 36" |
